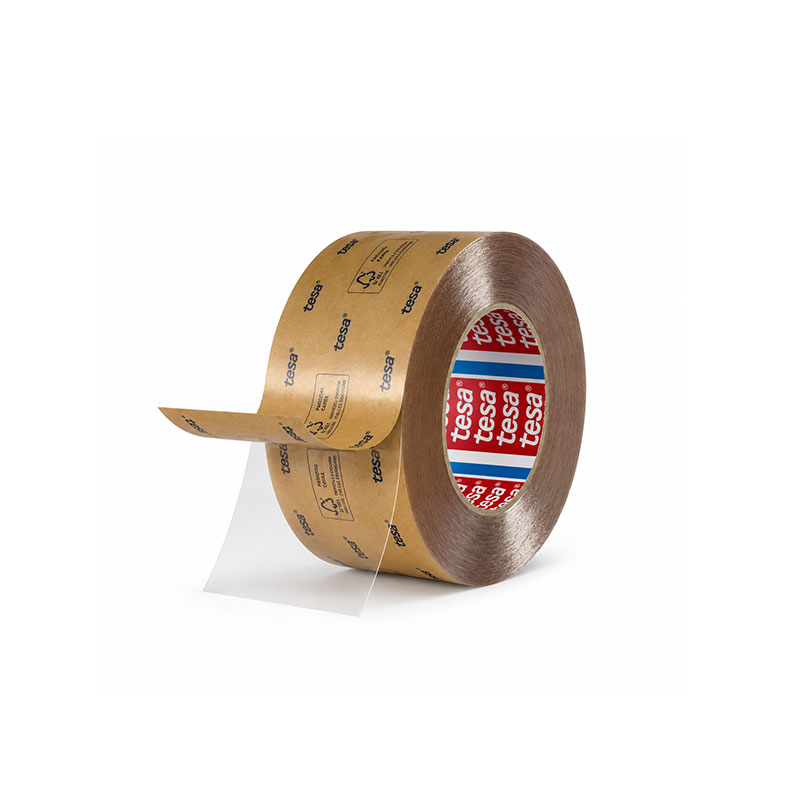

tesa® 4950 LSE Filmic Mounting Tape

tesa® 4950 is a double-sided transparent PET film tape coated with a tackified acrylic adhesive for demanding industrial bonding applications. It provides reliable adhesion to low surface energy substrates such as PP, PE, and EPDM without the need for a primer. The PET film backing provides dimensional stability and clean handling during converting and assembly operations. The adhesive system offers high initial tack, excellent shear strength, and resistance to humidity, chemicals, UV exposure, and plasticizers. It withstands continuous temperatures up to 100°C (212°F) and short-term exposure up to 200°C (392°F). The product is tested according to VDA 278 for low VOC emissions and is UL recognized in accordance with UL Standard 969 (File MH18055).







Main Applications

Product Composition
Backing
Post Consumer Recycled PET
Adhesive
Tackified Acrylic
Liner

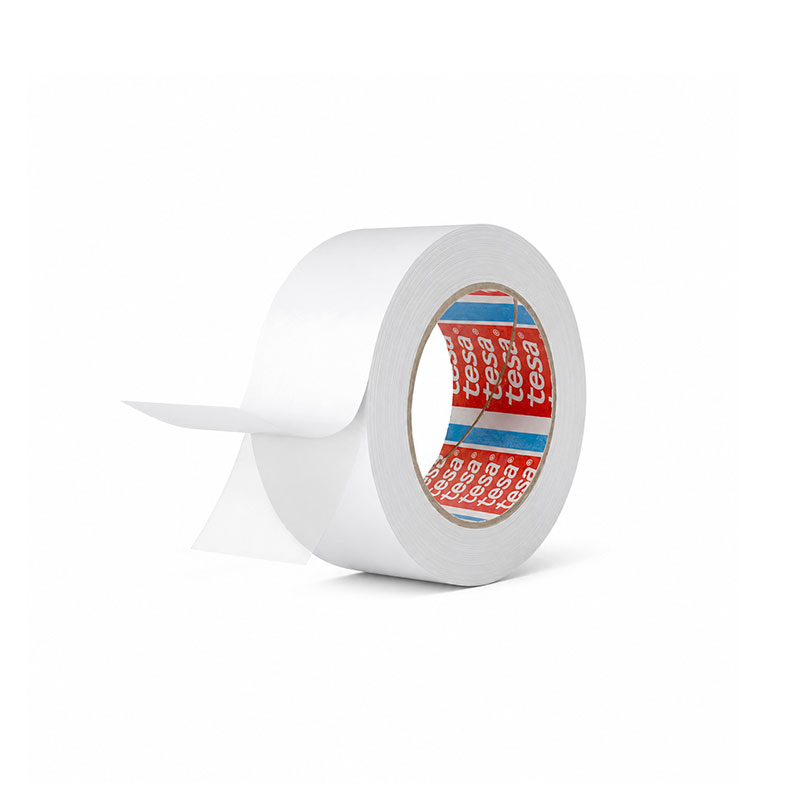

Brown Glassine Paper / White PE-coated
Colour
Transparent
Technical Data
Metric
Imperial
Thickness
100 µm
3.9 mil
Tensile Strength
20 N/cm
11.4 lb/in
Elongation at Break
50 %
50 %
Long-Term Temperature Resistance
100 °C
212 °F
Short-Term Temperature Resistance
200 °C
392 °F
Adhesion to Steel (initial)
7.5 N/cm
4.28 lbs/in
